Quick Reference Guide to 10-Mbps Media System

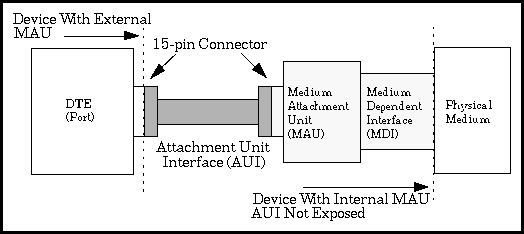

FIGURE 2.2 Block diagram of a 10-Mbps network connection
The figure shows the components defined in the IEEE standard for making an attachment to a 10-Mbps media system. While this set of entities and their three-letter identifiers might seem like more alphabet soup of interest to network engineers only, these identifiers describe real-world devices that you need to know about. We use the three-letter acronyms from the standard since you will find them used in vendor literature and printed on Ethernet devices.
